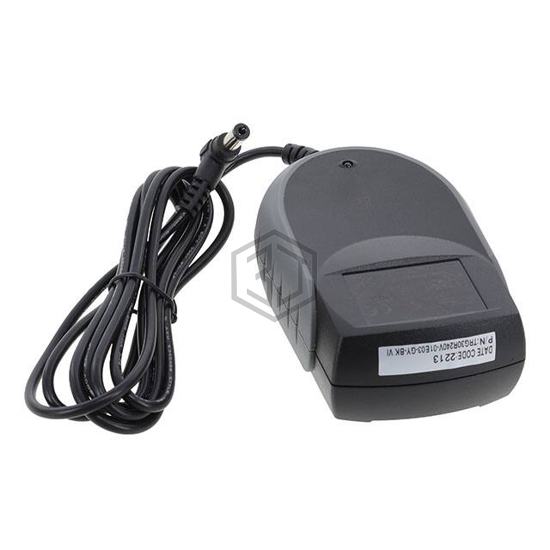

AC/DC WALL MOUNT ADAPTER 24V 30W
TRG30R240V-01E03-GY-BK VI is a AC DC Desktop, Wall Adapters manufactured by Cincon Electronics Co. LTD. AC/DC WALL MOUNT ADAPTER 24V 30W. Key specifications: operating temperature -20°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.25A, size / dimension 2.24" L x 2.27" W x 1.32" H (57.0mm x 57.6mm x 33.5mm).
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -20°C ~ 60°C |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | Multi-Blade (Sold Separately) |
| Features | - |
| Size / Dimension | 2.24" L x 2.27" W x 1.32" H (57.0mm x 57.6mm x 33.5mm) |
| Approval Agency | CE, cULus, FCC, GS, PSE, TUV |
| Standard Number | 60950-1 |
Submit your RFQ for TRG30R240V-01E03-GY-BK VI and get a quote within 24 hours.
