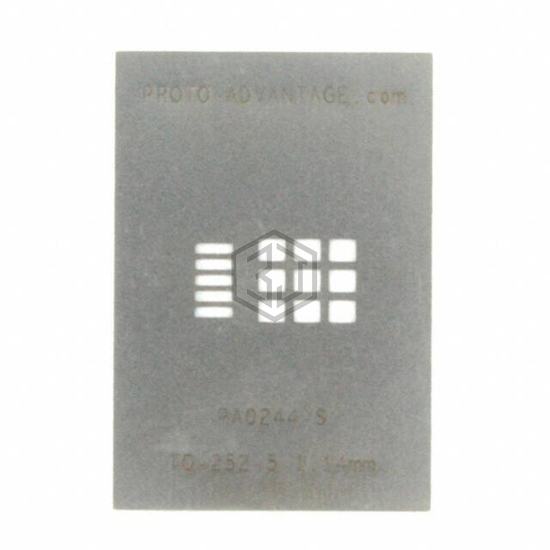

PA0244-S
TO-252-5 STENCIL
PA0244-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-252-5 STENCIL. Key specifications: material Stainless Steel, number of positions 5, pitch 0.045" (1.15mm).
In Stock: 1,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TO/DPAK |
| Number of Positions | 5 |
| Pitch | 0.045" (1.15mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Thermal Center Pad | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0244-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-252-5 STENCIL
The material of PA0244-S is Stainless Steel.
The number of positions of PA0244-S is 5.
The pitch of PA0244-S is 0.045" (1.15mm).
