PA0109-S

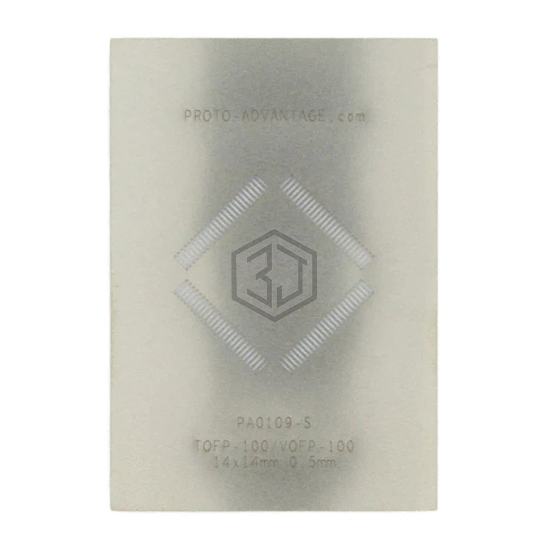

VQFP-100/TQFP-100 STENCIL
PA0109-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. VQFP-100/TQFP-100 STENCIL. Key specifications: material Stainless Steel, number of positions 100, pitch 0.020" (0.50mm).
In Stock: 6
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TQFP |
| Number of Positions | 100 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.551" L x 0.551" W (14.00mm x 14.00mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
Frequently Asked Questions
PA0109-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. VQFP-100/TQFP-100 STENCIL
The material of PA0109-S is Stainless Steel.
The number of positions of PA0109-S is 100.
The pitch of PA0109-S is 0.020" (0.50mm).
