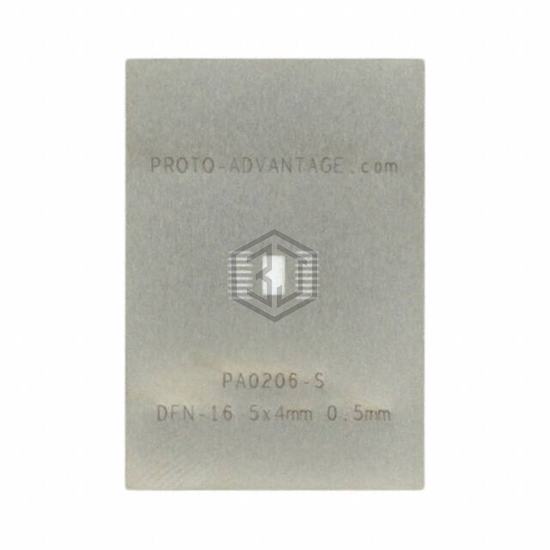

PA0206-S
DFN-16 STENCIL
PA0206-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-16 STENCIL. Key specifications: material Stainless Steel, number of positions 16, pitch 0.020" (0.50mm).
In Stock: 3,862
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.157" W (5.00mm x 4.00mm) |
| Thermal Center Pad | 0.354" L x 0.096" W (9.00mm x 2.45mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0206-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-16 STENCIL
The material of PA0206-S is Stainless Steel.
The number of positions of PA0206-S is 16.
The pitch of PA0206-S is 0.020" (0.50mm).
