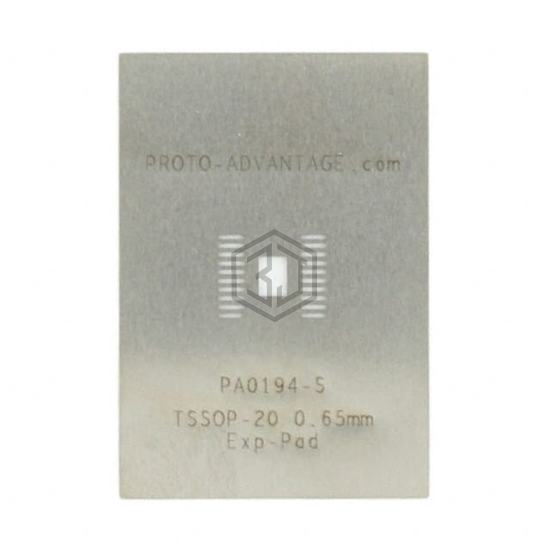

PA0194-S
TSSOP-20-EXP-PAD STENCIL
PA0194-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TSSOP-20-EXP-PAD STENCIL. Key specifications: material Stainless Steel, number of positions 20, pitch 0.026" (0.65mm).
In Stock: 4,420
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TSSOP |
| Number of Positions | 20 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.256" L x 0.173" W (6.50mm x 4.40mm) |
| Thermal Center Pad | 0.492" L x 0.118" W (12.50mm x 3.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0194-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TSSOP-20-EXP-PAD STENCIL
The material of PA0194-S is Stainless Steel.
The number of positions of PA0194-S is 20.
The pitch of PA0194-S is 0.026" (0.65mm).
