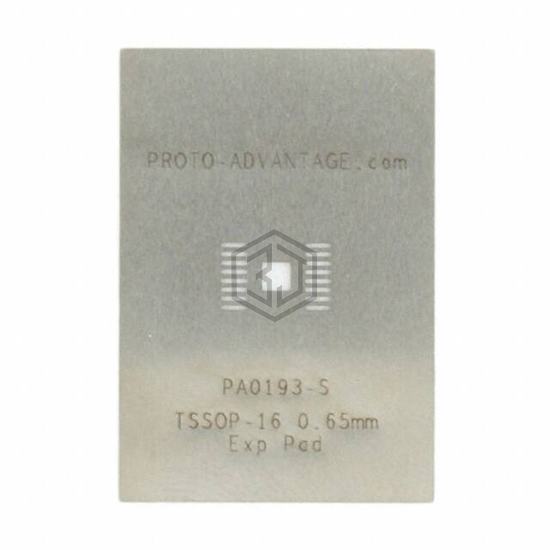

PA0193-S
TSSOP-16-EXP-PAD STENCIL
PA0193-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TSSOP-16-EXP-PAD STENCIL. Key specifications: material Stainless Steel, number of positions 16, pitch 0.026" (0.65mm).
In Stock: 6,503
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TSSOP |
| Number of Positions | 16 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.173" W (5.00mm x 4.40mm) |
| Thermal Center Pad | 0.433" L x 0.118" W (11.00mm x 3.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0193-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TSSOP-16-EXP-PAD STENCIL
The material of PA0193-S is Stainless Steel.
The number of positions of PA0193-S is 16.
The pitch of PA0193-S is 0.026" (0.65mm).
