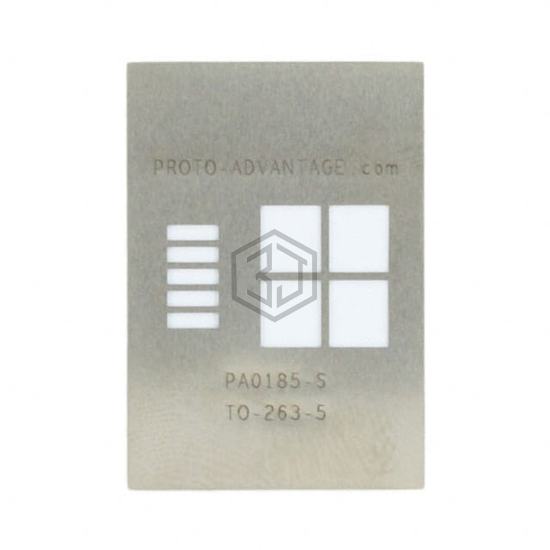

PA0185-S
TO-263-5 STENCIL
PA0185-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-263-5 STENCIL. Key specifications: material Stainless Steel, number of positions 5, pitch 0.067" (1.70mm).
In Stock: 8,790
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TO/DDPAK |
| Number of Positions | 5 |
| Pitch | 0.067" (1.70mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.400" L x 0.390" W (10.16mm x 9.91mm) |
| Thermal Center Pad | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0185-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-263-5 STENCIL
The material of PA0185-S is Stainless Steel.
The number of positions of PA0185-S is 5.
The pitch of PA0185-S is 0.067" (1.70mm).
