PA0183-S

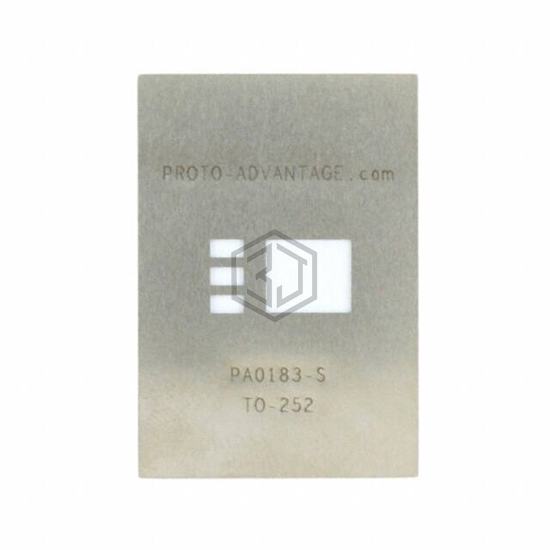

TO-252 STENCIL
PA0183-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-252 STENCIL. Key specifications: material Stainless Steel, number of positions 3, pitch 0.090" (2.29mm).
In Stock: 7,676
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TO/DPAK |
| Number of Positions | 3 |
| Pitch | 0.090" (2.29mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.287" L x 0.259" W (7.30mm x 6.58mm) |
| Thermal Center Pad | 0.276" L x 0.236" W (7.00mm x 6.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0183-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. TO-252 STENCIL
The material of PA0183-S is Stainless Steel.
The number of positions of PA0183-S is 3.
The pitch of PA0183-S is 0.090" (2.29mm).
