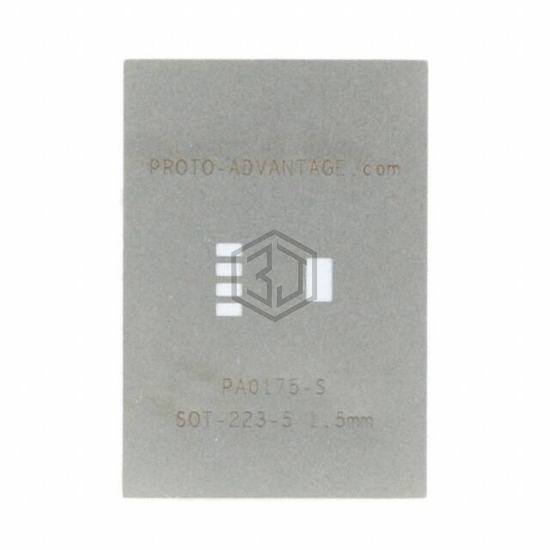

PA0175-S
SOT-223-5 STENCIL
PA0175-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. SOT-223-5 STENCIL. Key specifications: material Stainless Steel, number of positions 4, pitch 0.059" (1.50mm).
In Stock: 2,346
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SOT/SC |
| Number of Positions | 4 |
| Pitch | 0.059" (1.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.256" L x 0.140" W (6.50mm x 3.56mm) |
| Thermal Center Pad | 0.130" L x 0.079" W (3.30mm x 2.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0175-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. SOT-223-5 STENCIL
The material of PA0175-S is Stainless Steel.
The number of positions of PA0175-S is 4.
The pitch of PA0175-S is 0.059" (1.50mm).
