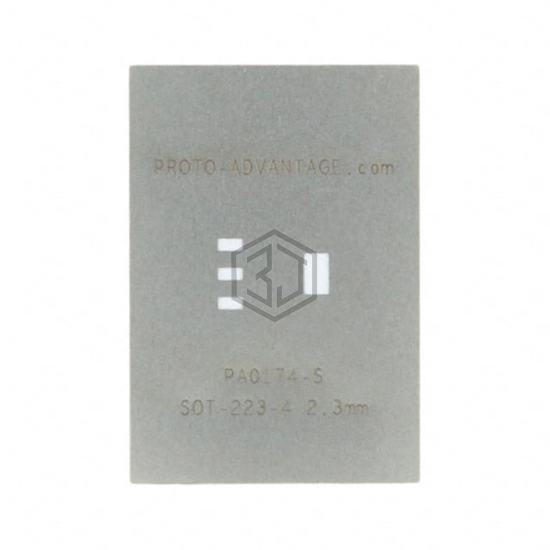

PA0174-S
SOT-223-4 STENCIL
PA0174-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. SOT-223-4 STENCIL. Key specifications: material Stainless Steel, number of positions 3, pitch 0.091" (2.30mm).
In Stock: 6,897
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SOT/SC |
| Number of Positions | 3 |
| Pitch | 0.091" (2.30mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.256" L x 0.140" W (6.50mm x 3.56mm) |
| Thermal Center Pad | 0.130" L x 0.079" W (3.30mm x 2.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0174-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. SOT-223-4 STENCIL
The material of PA0174-S is Stainless Steel.
The number of positions of PA0174-S is 3.
The pitch of PA0174-S is 0.091" (2.30mm).
