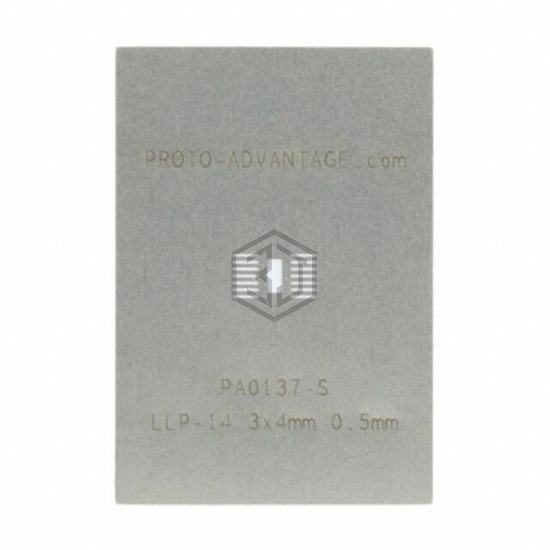

PA0137-S
LLP-14 STENCIL
PA0137-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. LLP-14 STENCIL. Key specifications: material Stainless Steel, number of positions 14, pitch 0.020" (0.50mm).
In Stock: 3,871
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LLP |
| Number of Positions | 14 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Thermal Center Pad | 0.276" L x 0.063" W (7.00mm x 1.60mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0137-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. LLP-14 STENCIL
The material of PA0137-S is Stainless Steel.
The number of positions of PA0137-S is 14.
The pitch of PA0137-S is 0.020" (0.50mm).
