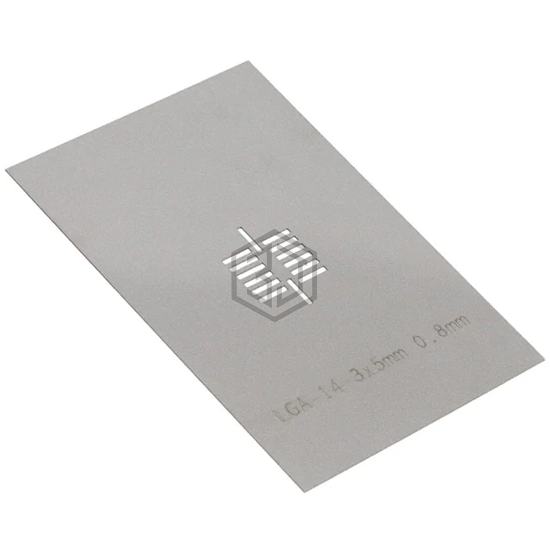

PA0101-S
STENCIL LGA-14 3X5MM .8MM
PA0101-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. STENCIL LGA-14 3X5MM .8MM. Key specifications: material Stainless Steel, number of positions 14, pitch 0.031" (0.80mm).
In Stock: 24
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LGA |
| Number of Positions | 14 |
| Pitch | 0.031" (0.80mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.118" W (5.00mm x 3.00mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
Frequently Asked Questions
PA0101-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. STENCIL LGA-14 3X5MM .8MM
The material of PA0101-S is Stainless Steel.
The number of positions of PA0101-S is 14.
The pitch of PA0101-S is 0.031" (0.80mm).
