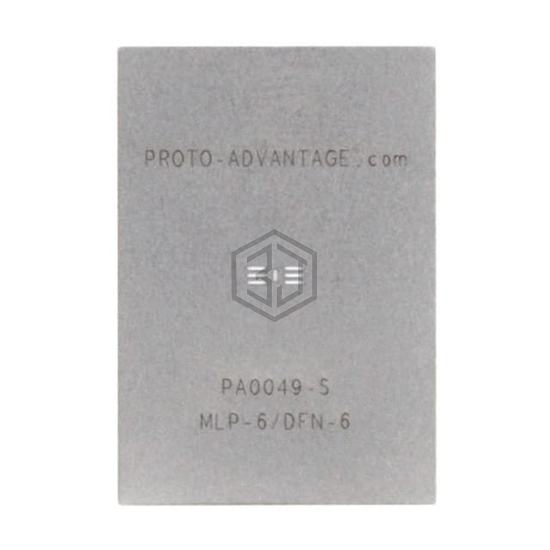

PA0049-S
MLP/DFN-6 STENCIL
PA0049-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. MLP/DFN-6 STENCIL. Key specifications: material Stainless Steel, number of positions 6, pitch 0.020" (0.50mm).
In Stock: 8,311
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Thermal Center Pad | 0.157" L x 0.031" W (4.00mm x 0.80mm) |
| Material | Stainless Steel |
Frequently Asked Questions
PA0049-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. MLP/DFN-6 STENCIL
The material of PA0049-S is Stainless Steel.
The number of positions of PA0049-S is 6.
The pitch of PA0049-S is 0.020" (0.50mm).
