DFN-22 (0.5MM PITCH, 6X3MM BODY)

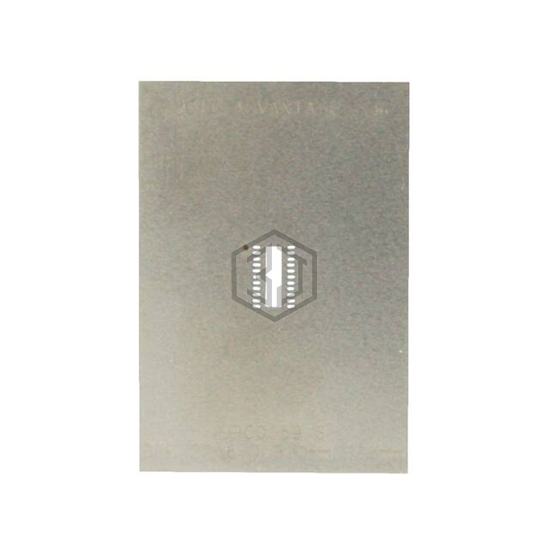

IPC0159-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-22 (0.5MM PITCH, 6X3MM BODY). Key specifications: material Stainless Steel, number of positions 22, pitch 0.020" (0.50mm).
In Stock: 6,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 22 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.236" L x 0.118" W (6.00mm x 3.00mm) |
| Thermal Center Pad | 0.211" L x 0.065" W (5.35mm x 1.65mm) |
| Material | Stainless Steel |
Submit your RFQ for IPC0159-S and get a quote within 24 hours.
