QFN-24/LFCSP-24 (0.5MM PITCH, 5X

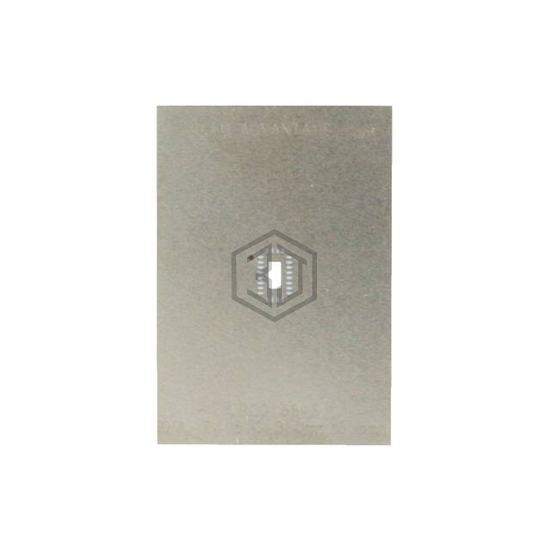

IPC0158-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-24/LFCSP-24 (0.5MM PITCH, 5X. Key specifications: material Stainless Steel, number of positions 24, pitch 0.020" (0.50mm).
In Stock: 9,611
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 24 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.118" W (5.00mm x 3.00mm) |
| Thermal Center Pad | 0.144" L x 0.065" W (3.65mm x 1.65mm) |
| Material | Stainless Steel |
Submit your RFQ for IPC0158-S and get a quote within 24 hours.
