DFN-12 (0.4MM PITCH, 3X3MM BODY)

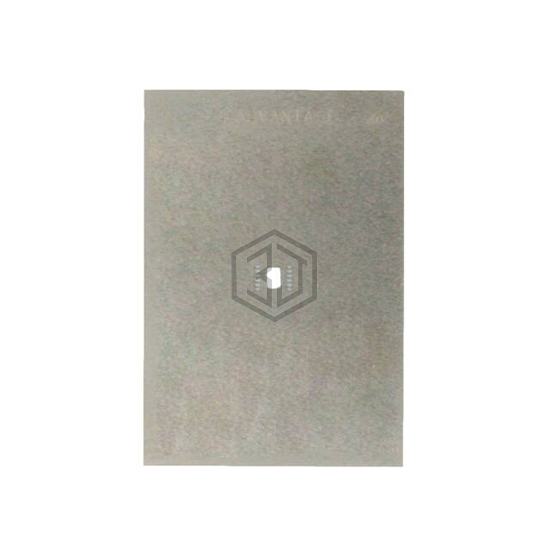

IPC0155-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-12 (0.4MM PITCH, 3X3MM BODY). Key specifications: material Stainless Steel, number of positions 12, pitch 0.016" (0.40mm).
In Stock: 5,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 12 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Thermal Center Pad | 0.087" L x 0.066" W (2.20mm x 1.68mm) |
| Material | Stainless Steel |
Submit your RFQ for IPC0155-S and get a quote within 24 hours.
