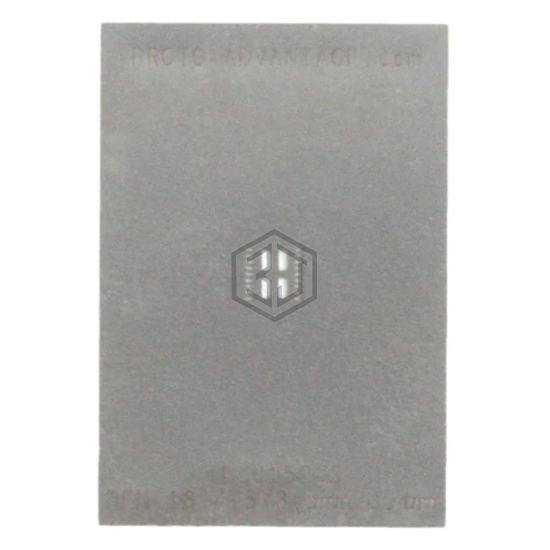

IPC0152-S
DFN-18 STENCIL
IPC0152-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-18 STENCIL. Key specifications: material Stainless Steel, number of positions 18, pitch 0.016" (0.40mm).
In Stock: 5,678
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 18 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.177" L x 0.138" W (4.50mm x 3.50mm) |
| Thermal Center Pad | 0.156" L x 0.083" W (3.95mm x 2.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0152-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-18 STENCIL
The material of IPC0152-S is Stainless Steel.
The number of positions of IPC0152-S is 18.
The pitch of IPC0152-S is 0.016" (0.40mm).
