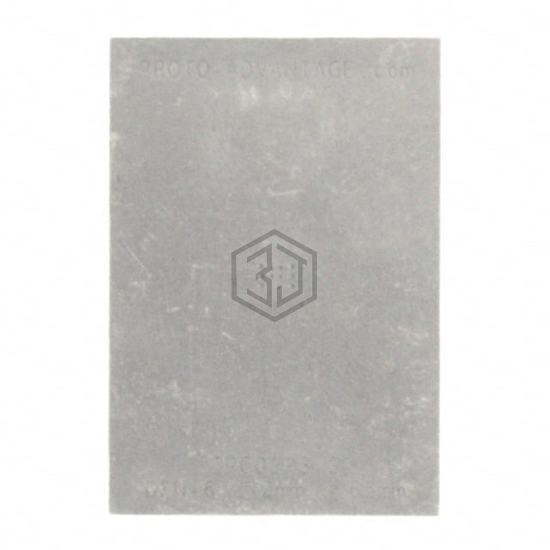

IPC0123-S
DFN-6 STENCIL
IPC0123-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL. Key specifications: material Stainless Steel, number of positions 6, pitch 0.026" (0.65mm).
In Stock: 3,318
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 6 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Thermal Center Pad | 0.064" L x 0.047" W (1.63mm x 1.20mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0123-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL
The material of IPC0123-S is Stainless Steel.
The number of positions of IPC0123-S is 6.
The pitch of IPC0123-S is 0.026" (0.65mm).
