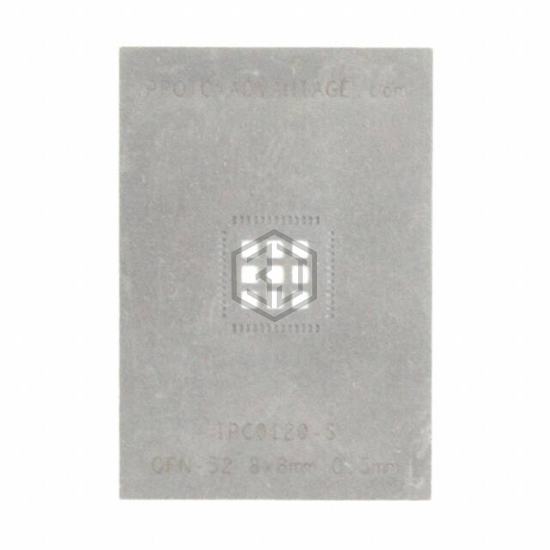

IPC0120-S
QFN-52 STENCIL
IPC0120-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-52 STENCIL. Key specifications: material Stainless Steel, number of positions 52, pitch 0.020" (0.50mm).
In Stock: 9,412
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 52 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Thermal Center Pad | 0.244" L x 0.244" W (6.20mm x 6.20mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0120-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-52 STENCIL
The material of IPC0120-S is Stainless Steel.
The number of positions of IPC0120-S is 52.
The pitch of IPC0120-S is 0.020" (0.50mm).
