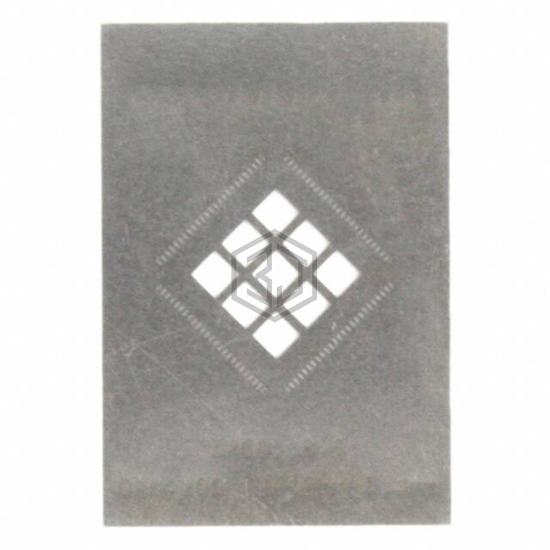

IPC0118-S
QFN-100 STENCIL
IPC0118-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-100 STENCIL. Key specifications: material Stainless Steel, number of positions 100, pitch 0.016" (0.40mm).
In Stock: 2,596
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 100 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Thermal Center Pad | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0118-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-100 STENCIL
The material of IPC0118-S is Stainless Steel.
The number of positions of IPC0118-S is 100.
The pitch of IPC0118-S is 0.016" (0.40mm).
