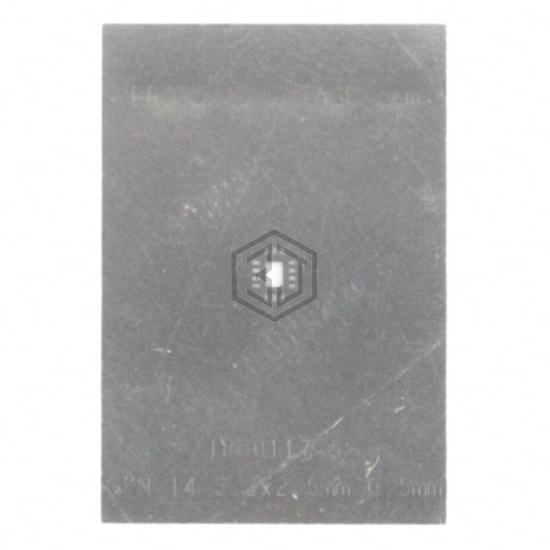

IPC0117-S
QFN-14 STENCIL
IPC0117-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-14 STENCIL. Key specifications: material Stainless Steel, number of positions 14, pitch 0.020" (0.50mm).
In Stock: 4,458
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 14 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Thermal Center Pad | 0.083" L x 0.055" W (2.10mm x 1.40mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0117-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-14 STENCIL
The material of IPC0117-S is Stainless Steel.
The number of positions of IPC0117-S is 14.
The pitch of IPC0117-S is 0.020" (0.50mm).
