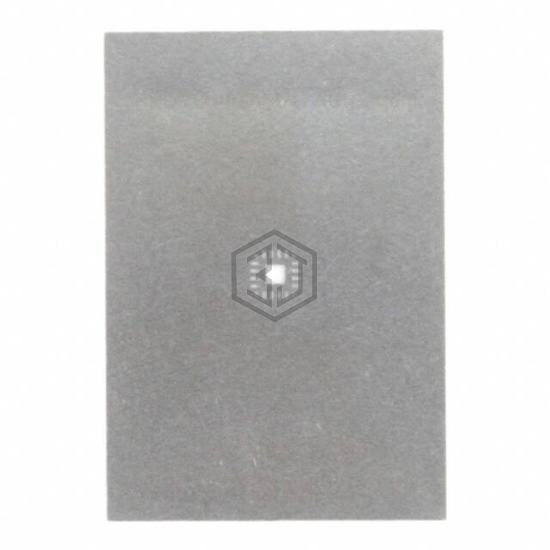

IPC0113-S
QFN-20 STENCIL
IPC0113-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL. Key specifications: material Stainless Steel, number of positions 20, pitch 0.020" (0.50mm).
In Stock: 5,155
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 20 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Thermal Center Pad | 0.067" L x 0.067" W (1.70mm x 1.70mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0113-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL
The material of IPC0113-S is Stainless Steel.
The number of positions of IPC0113-S is 20.
The pitch of IPC0113-S is 0.020" (0.50mm).
