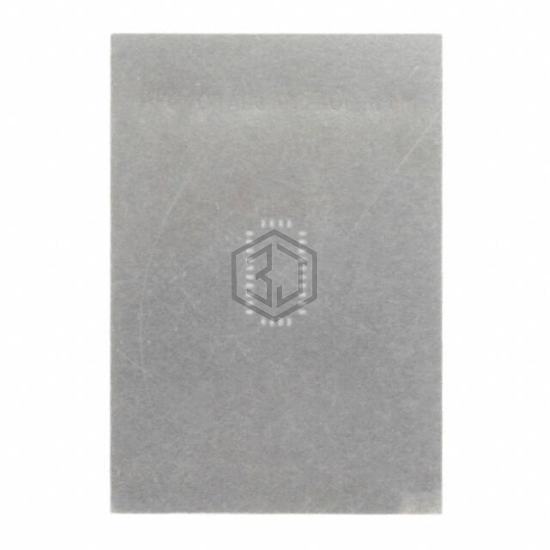

IPC0109-S
LGA-28 STENCIL
IPC0109-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. LGA-28 STENCIL. Key specifications: material Stainless Steel, number of positions 28, pitch 0.024" (0.60mm).
In Stock: 7,358
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LGA |
| Number of Positions | 28 |
| Pitch | 0.024" (0.60mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.295" L x 0.173" W (7.50mm x 4.40mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0109-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. LGA-28 STENCIL
The material of IPC0109-S is Stainless Steel.
The number of positions of IPC0109-S is 28.
The pitch of IPC0109-S is 0.024" (0.60mm).
