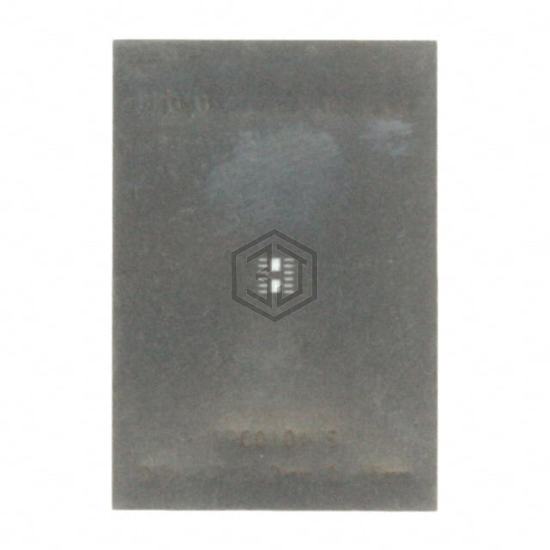

IPC0104-S
DFN-12 STENCIL
IPC0104-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-12 STENCIL. Key specifications: material Stainless Steel, number of positions 12, pitch 0.018" (0.45mm).
In Stock: 2,733
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 12 |
| Pitch | 0.018" (0.45mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.118" L x 0.079" W (3.00mm x 2.00mm) |
| Thermal Center Pad | 0.094" L x 0.025" W (2.39mm x 0.64mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0104-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-12 STENCIL
The material of IPC0104-S is Stainless Steel.
The number of positions of IPC0104-S is 12.
The pitch of IPC0104-S is 0.018" (0.45mm).
