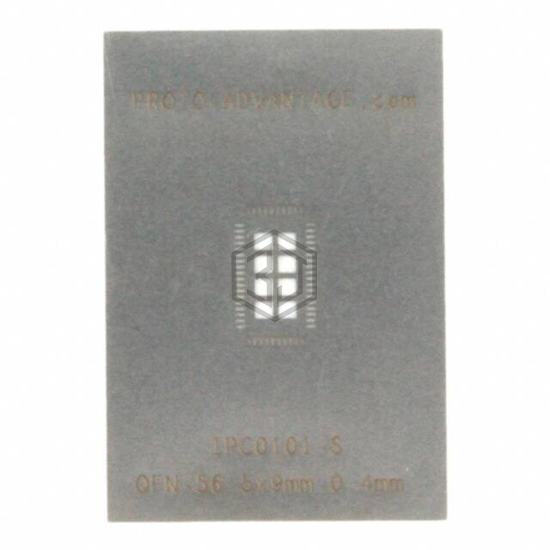

IPC0101-S
QFN-56 STENCIL
IPC0101-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-56 STENCIL. Key specifications: material Stainless Steel, number of positions 56, pitch 0.016" (0.40mm).
In Stock: 9,124
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 56 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.354" L x 0.197" W (9.00mm x 5.00mm) |
| Thermal Center Pad | 0.281" L x 0.136" W (7.13mm x 3.45mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0101-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-56 STENCIL
The material of IPC0101-S is Stainless Steel.
The number of positions of IPC0101-S is 56.
The pitch of IPC0101-S is 0.016" (0.40mm).
