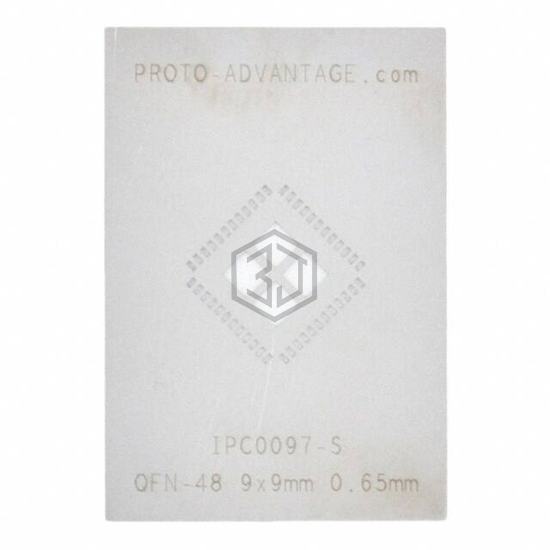

IPC0097-S
QFN-48 STENCIL
IPC0097-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-48 STENCIL. Key specifications: material Stainless Steel, number of positions 48, pitch 0.026" (0.65mm).
In Stock: 4,253
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 48 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Thermal Center Pad | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0097-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-48 STENCIL
The material of IPC0097-S is Stainless Steel.
The number of positions of IPC0097-S is 48.
The pitch of IPC0097-S is 0.026" (0.65mm).
