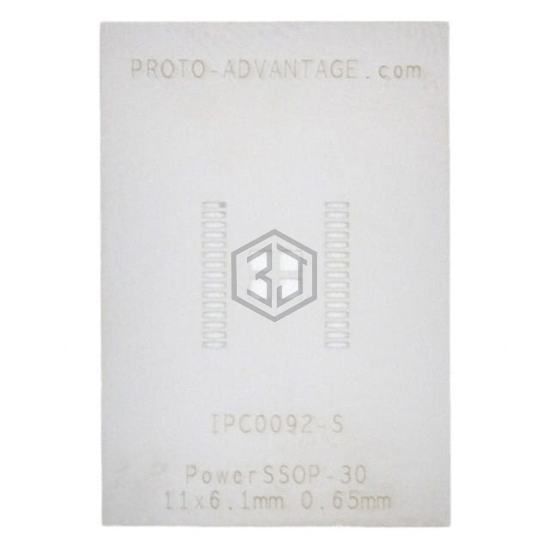

IPC0092-S
POWERSSOP-30 STENCIL
IPC0092-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. POWERSSOP-30 STENCIL. Key specifications: material Stainless Steel, number of positions 30, pitch 0.026" (0.65mm).
In Stock: 7,813
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PowerSSOP |
| Number of Positions | 30 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.433" L x 0.240" W (11.00mm x 6.10mm) |
| Thermal Center Pad | 0.162" L x 0.154" W (4.11mm x 3.91mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0092-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. POWERSSOP-30 STENCIL
The material of IPC0092-S is Stainless Steel.
The number of positions of IPC0092-S is 30.
The pitch of IPC0092-S is 0.026" (0.65mm).
