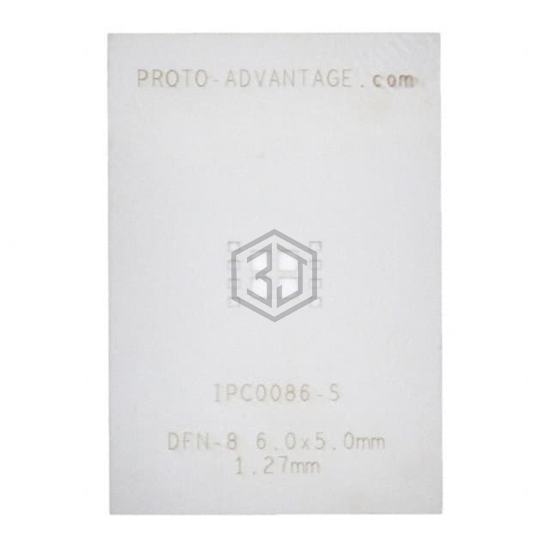

IPC0086-S
DFN-8 STENCIL
IPC0086-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-8 STENCIL. Key specifications: material Stainless Steel, number of positions 8, pitch 0.050" (1.27mm).
In Stock: 1,214
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 8 |
| Pitch | 0.050" (1.27mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.236" L x 0.197" W (6.00mm x 5.00mm) |
| Thermal Center Pad | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0086-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-8 STENCIL
The material of IPC0086-S is Stainless Steel.
The number of positions of IPC0086-S is 8.
The pitch of IPC0086-S is 0.050" (1.27mm).
