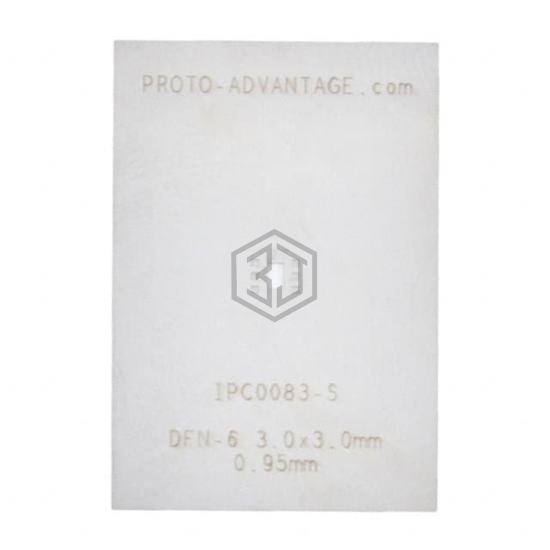

IPC0083-S
DFN-6 STENCIL
IPC0083-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL. Key specifications: material Stainless Steel, number of positions 6, pitch 0.037" (0.95mm).
In Stock: 1,161
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 6 |
| Pitch | 0.037" (0.95mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Thermal Center Pad | 0.091" L x 0.059" W (2.30mm x 1.50mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0083-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL
The material of IPC0083-S is Stainless Steel.
The number of positions of IPC0083-S is 6.
The pitch of IPC0083-S is 0.037" (0.95mm).
