IPC0073-S
DFN-16 STENCIL

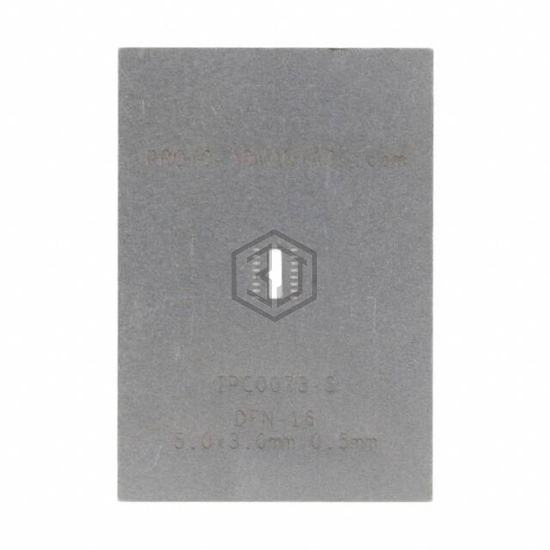

IPC0073-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-16 STENCIL. Key specifications: material Stainless Steel, number of positions 16, pitch 0.020" (0.50mm).
In Stock: 3,379
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.118" W (5.00mm x 3.00mm) |
| Thermal Center Pad | 0.173" L x 0.065" W (4.40mm x 1.65mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0073-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-16 STENCIL
The material of IPC0073-S is Stainless Steel.
The number of positions of IPC0073-S is 16.
The pitch of IPC0073-S is 0.020" (0.50mm).
