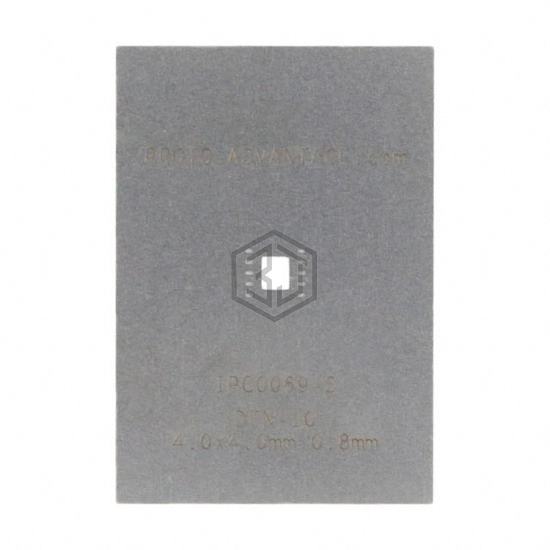

IPC0069-S
DFN-10 STENCIL
IPC0069-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-10 STENCIL. Key specifications: material Stainless Steel, number of positions 10, pitch 0.031" (0.80mm).
In Stock: 8,466
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 10 |
| Pitch | 0.031" (0.80mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Thermal Center Pad | 0.118" L x 0.102" W (3.00mm x 2.60mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0069-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-10 STENCIL
The material of IPC0069-S is Stainless Steel.
The number of positions of IPC0069-S is 10.
The pitch of IPC0069-S is 0.031" (0.80mm).
