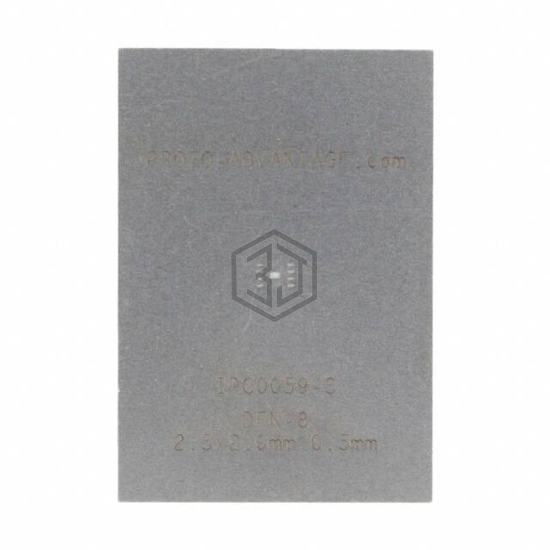

IPC0059-S
DFN-8 STENCIL
IPC0059-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-8 STENCIL. Key specifications: material Stainless Steel, number of positions 8, pitch 0.020" (0.50mm).
In Stock: 1,424
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 8 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Thermal Center Pad | 0.051" L x 0.039" W (1.30mm x 1.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0059-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-8 STENCIL
The material of IPC0059-S is Stainless Steel.
The number of positions of IPC0059-S is 8.
The pitch of IPC0059-S is 0.020" (0.50mm).
