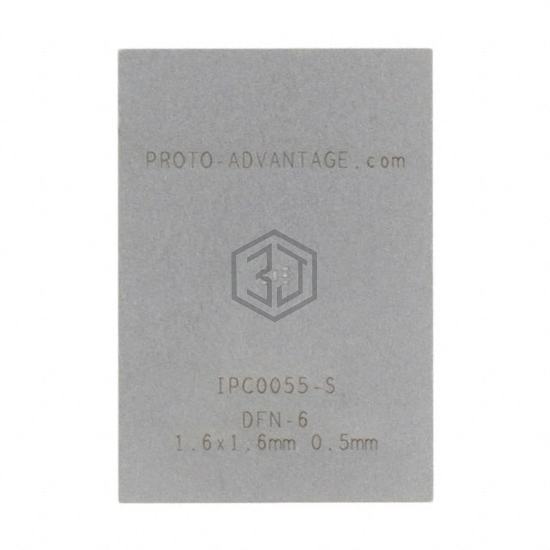

IPC0055-S
DFN-6 STENCIL
IPC0055-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL. Key specifications: material Stainless Steel, number of positions 6, pitch 0.020" (0.50mm).
In Stock: 4,098
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 6 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.063" L x 0.063" W (1.60mm x 1.60mm) |
| Thermal Center Pad | 0.039" L x 0.018" W (1.00mm x 0.45mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0055-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-6 STENCIL
The material of IPC0055-S is Stainless Steel.
The number of positions of IPC0055-S is 6.
The pitch of IPC0055-S is 0.020" (0.50mm).
