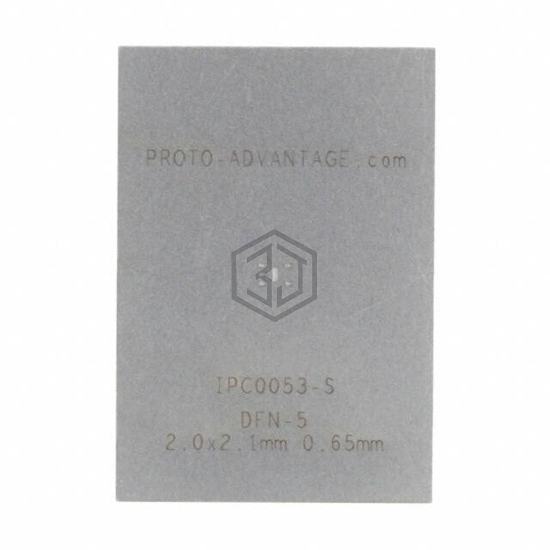

IPC0053-S
DFN-5 STENCIL
IPC0053-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-5 STENCIL. Key specifications: material Stainless Steel, number of positions 5, pitch 0.026" (0.65mm).
In Stock: 4,778
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DFN |
| Number of Positions | 5 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.083" L x 0.079" W (2.10mm x 2.00mm) |
| Thermal Center Pad | 0.053" L x 0.026" W (1.35mm x 0.65mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0053-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. DFN-5 STENCIL
The material of IPC0053-S is Stainless Steel.
The number of positions of IPC0053-S is 5.
The pitch of IPC0053-S is 0.026" (0.65mm).
