POWERSOIC-20/PSOP-20/HSOP-20 STE

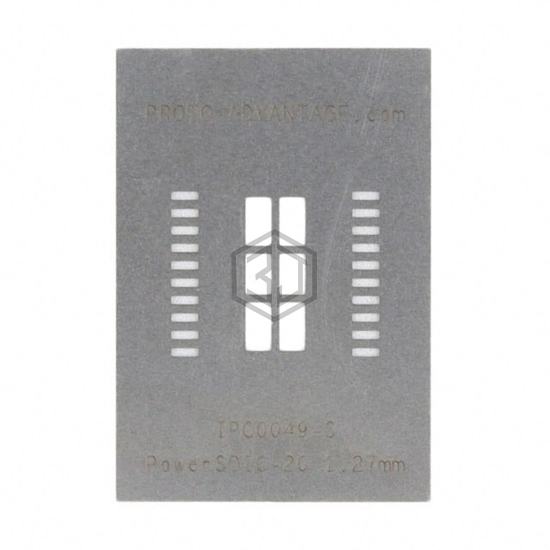

IPC0049-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. POWERSOIC-20/PSOP-20/HSOP-20 STE. Key specifications: material Stainless Steel, number of positions 20, pitch 0.050" (1.27mm).
In Stock: 6,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PowerSOIC |
| Number of Positions | 20 |
| Pitch | 0.050" (1.27mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.630" L x 0.433" W (16.00mm x 11.00mm) |
| Thermal Center Pad | 0.630" L x 0.244" W (16.00mm x 6.20mm) |
| Material | Stainless Steel |
Submit your RFQ for IPC0049-S and get a quote within 24 hours.
