POWERSOIC-36/PSOP-36/HSOP-36 STE

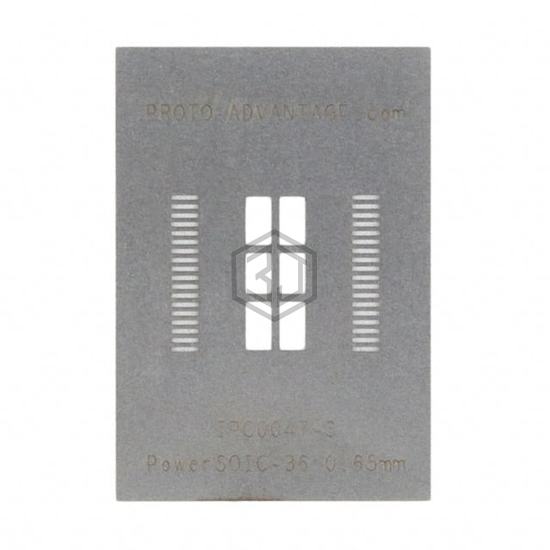

IPC0047-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. POWERSOIC-36/PSOP-36/HSOP-36 STE. Key specifications: material Stainless Steel, number of positions 36, pitch 0.026" (0.65mm).
In Stock: 9,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PowerSOIC |
| Number of Positions | 36 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.630" L x 0.433" W (16.00mm x 11.00mm) |
| Thermal Center Pad | 0.630" L x 0.244" W (16.00mm x 6.20mm) |
| Material | Stainless Steel |
Submit your RFQ for IPC0047-S and get a quote within 24 hours.
