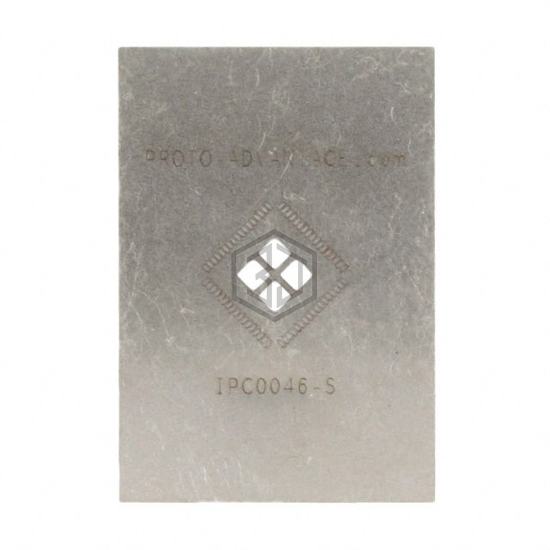

IPC0046-S
QFN-68 STENCIL
IPC0046-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-68 STENCIL. Key specifications: material Stainless Steel, number of positions 68, pitch 0.016" (0.40mm).
In Stock: 6,921
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 68 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Thermal Center Pad | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0046-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-68 STENCIL
The material of IPC0046-S is Stainless Steel.
The number of positions of IPC0046-S is 68.
The pitch of IPC0046-S is 0.016" (0.40mm).
