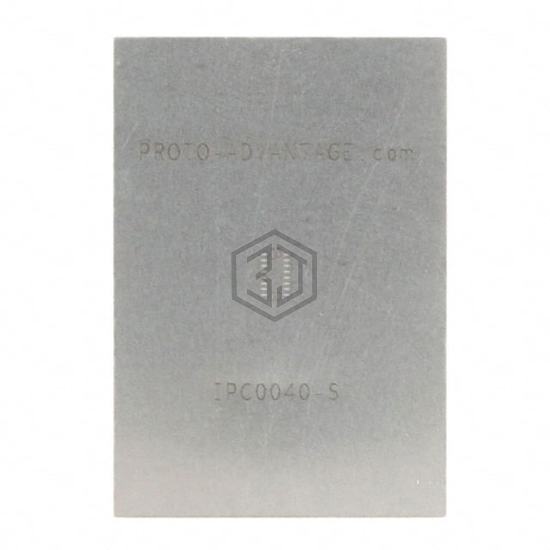

IPC0040-S
QFN-20 STENCIL
IPC0040-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL. Key specifications: material Stainless Steel, number of positions 20, pitch 0.016" (0.40mm).
In Stock: 9,452
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 20 |
| Pitch | 0.016" (0.40mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0040-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL
The material of IPC0040-S is Stainless Steel.
The number of positions of IPC0040-S is 20.
The pitch of IPC0040-S is 0.016" (0.40mm).
