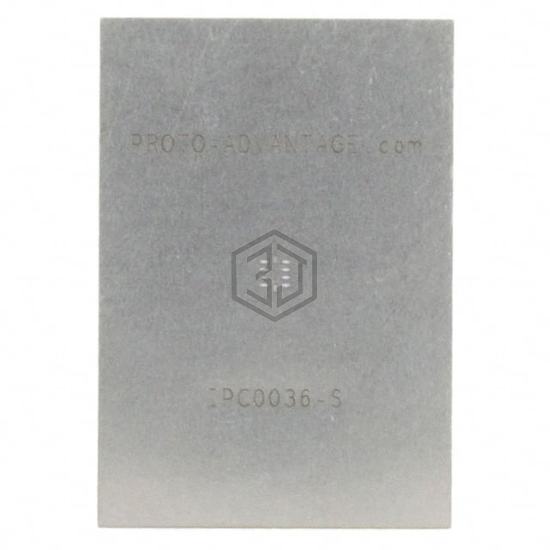

IPC0036-S
QFN-10 STENCIL
IPC0036-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-10 STENCIL. Key specifications: material Stainless Steel, number of positions 10, pitch 0.020" (0.50mm).
In Stock: 8,793
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 10 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.083" L x 0.063" W (2.10mm x 1.60mm) |
| Thermal Center Pad | - |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0036-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-10 STENCIL
The material of IPC0036-S is Stainless Steel.
The number of positions of IPC0036-S is 10.
The pitch of IPC0036-S is 0.020" (0.50mm).
