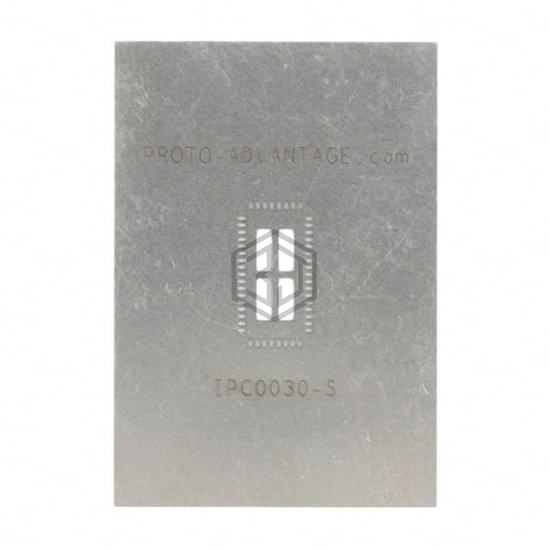

IPC0030-S
QFN-50 STENCIL
IPC0030-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-50 STENCIL. Key specifications: material Stainless Steel, number of positions 50, pitch 0.020" (0.50mm).
In Stock: 6,060
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Thermal Center Pad | 0.319" L x 0.130" W (8.10mm x 3.30mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0030-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-50 STENCIL
The material of IPC0030-S is Stainless Steel.
The number of positions of IPC0030-S is 50.
The pitch of IPC0030-S is 0.020" (0.50mm).
