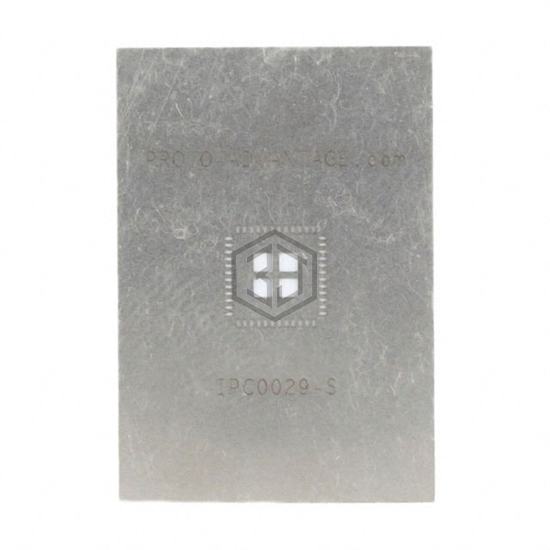

IPC0029-S
QFN-48 STENCIL
IPC0029-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-48 STENCIL. Key specifications: material Stainless Steel, number of positions 48, pitch 0.020" (0.50mm).
In Stock: 10
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 48 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Thermal Center Pad | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0029-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-48 STENCIL
The material of IPC0029-S is Stainless Steel.
The number of positions of IPC0029-S is 48.
The pitch of IPC0029-S is 0.020" (0.50mm).
