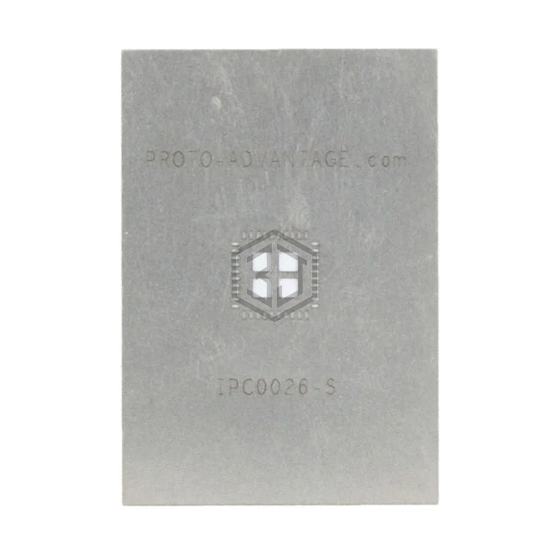

IPC0026-S
QFN-40 STENCIL
IPC0026-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-40 STENCIL. Key specifications: material Stainless Steel, number of positions 40, pitch 0.020" (0.50mm).
In Stock: 6
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 40 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Thermal Center Pad | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0026-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-40 STENCIL
The material of IPC0026-S is Stainless Steel.
The number of positions of IPC0026-S is 40.
The pitch of IPC0026-S is 0.020" (0.50mm).
