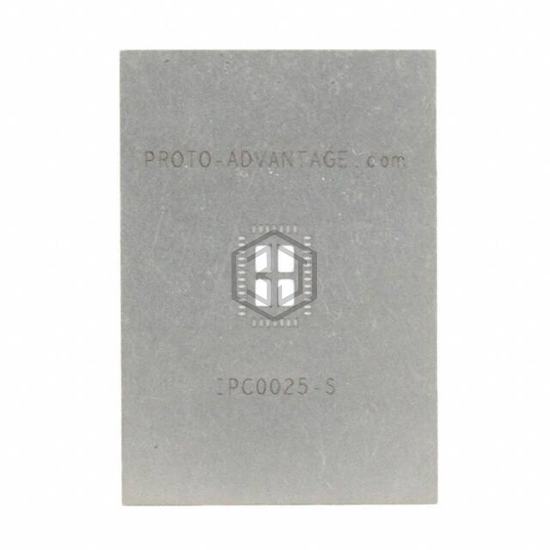

IPC0025-S
QFN-38 STENCIL
IPC0025-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-38 STENCIL. Key specifications: material Stainless Steel, number of positions 38, pitch 0.020" (0.50mm).
In Stock: 7,665
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 38 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Thermal Center Pad | 0.217" L x 0.138" W (5.50mm x 3.50mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0025-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-38 STENCIL
The material of IPC0025-S is Stainless Steel.
The number of positions of IPC0025-S is 38.
The pitch of IPC0025-S is 0.020" (0.50mm).
