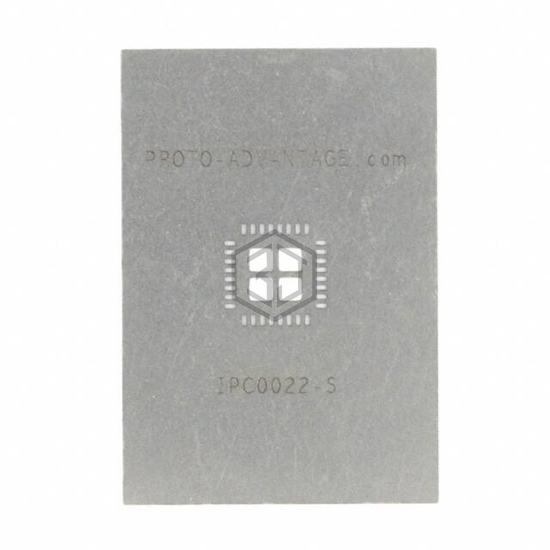

IPC0022-S
QFN-32 STENCIL
IPC0022-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-32 STENCIL. Key specifications: material Stainless Steel, number of positions 32, pitch 0.026" (0.65mm).
In Stock: 5,668
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 32 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Thermal Center Pad | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0022-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-32 STENCIL
The material of IPC0022-S is Stainless Steel.
The number of positions of IPC0022-S is 32.
The pitch of IPC0022-S is 0.026" (0.65mm).
