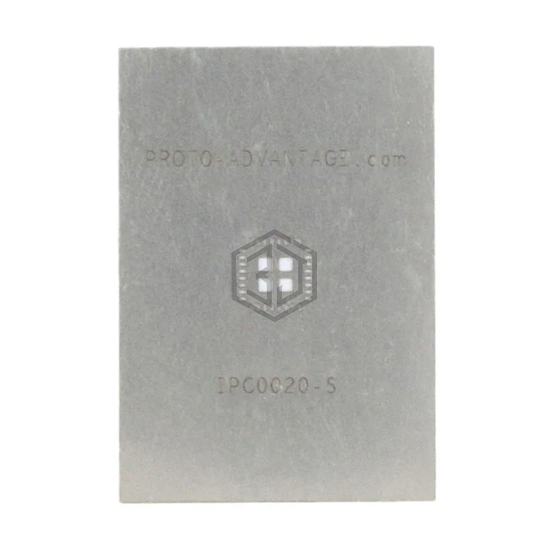

IPC0020-S
STENCIL 5X5 MM .5MM
IPC0020-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. STENCIL 5X5 MM .5MM. Key specifications: material Stainless Steel, number of positions 32, pitch 0.020" (0.50mm).
In Stock: 14
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 32 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Thermal Center Pad | 0.122" L x 0.122" W (3.10mm x 3.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0020-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. STENCIL 5X5 MM .5MM
The material of IPC0020-S is Stainless Steel.
The number of positions of IPC0020-S is 32.
The pitch of IPC0020-S is 0.020" (0.50mm).
