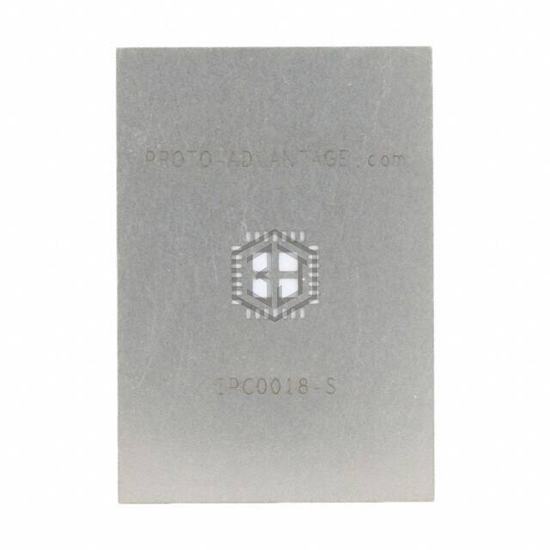

IPC0018-S
QFN-28 STENCIL
IPC0018-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-28 STENCIL. Key specifications: material Stainless Steel, number of positions 28, pitch 0.026" (0.65mm).
In Stock: 7,905
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 28 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Thermal Center Pad | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0018-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-28 STENCIL
The material of IPC0018-S is Stainless Steel.
The number of positions of IPC0018-S is 28.
The pitch of IPC0018-S is 0.026" (0.65mm).
