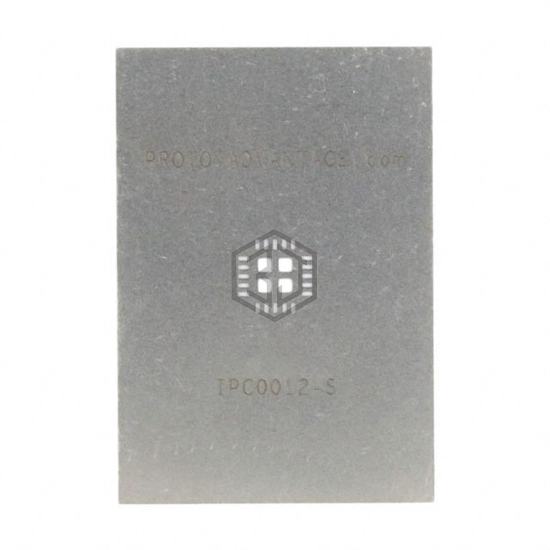

IPC0012-S
QFN-20 STENCIL
IPC0012-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL. Key specifications: material Stainless Steel, number of positions 20, pitch 0.026" (0.65mm).
In Stock: 2,692
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 20 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Thermal Center Pad | 0.122" L x 0.122" W (3.10mm x 3.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0012-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-20 STENCIL
The material of IPC0012-S is Stainless Steel.
The number of positions of IPC0012-S is 20.
The pitch of IPC0012-S is 0.026" (0.65mm).
