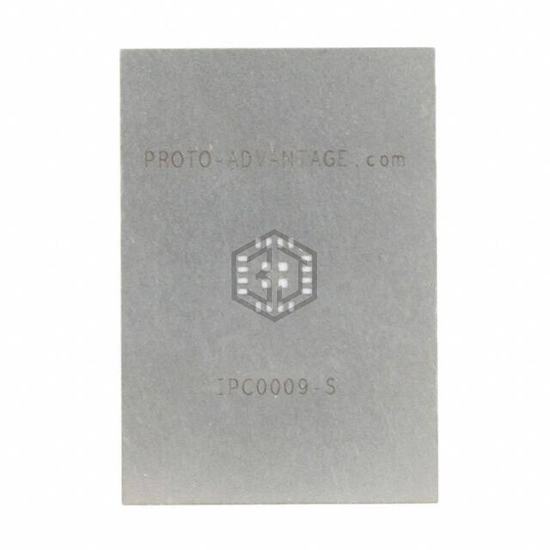

IPC0009-S
QFN-16 STENCIL
IPC0009-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-16 STENCIL. Key specifications: material Stainless Steel, number of positions 16, pitch 0.031" (0.80mm).
In Stock: 4,569
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 16 |
| Pitch | 0.031" (0.80mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Thermal Center Pad | 0.106" L x 0.106" W (2.70mm x 2.70mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0009-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-16 STENCIL
The material of IPC0009-S is Stainless Steel.
The number of positions of IPC0009-S is 16.
The pitch of IPC0009-S is 0.031" (0.80mm).
