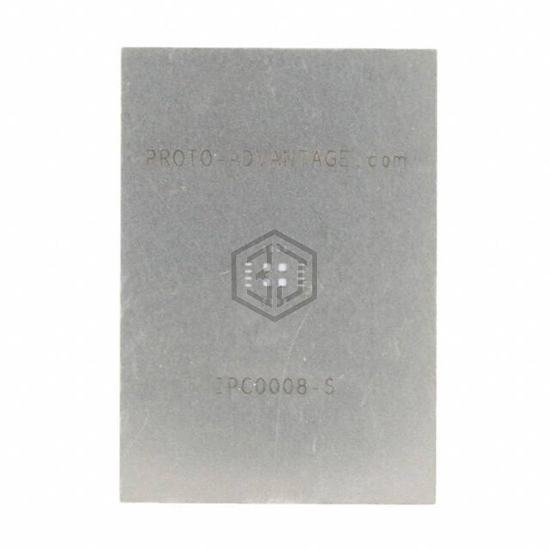

IPC0008-S
QFN-16 STENCIL
IPC0008-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-16 STENCIL. Key specifications: material Stainless Steel, number of positions 16, pitch 0.020" (0.50mm).
In Stock: 2,408
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Thermal Center Pad | 0.094" L x 0.094" W (2.40mm x 2.40mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0008-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-16 STENCIL
The material of IPC0008-S is Stainless Steel.
The number of positions of IPC0008-S is 16.
The pitch of IPC0008-S is 0.020" (0.50mm).
