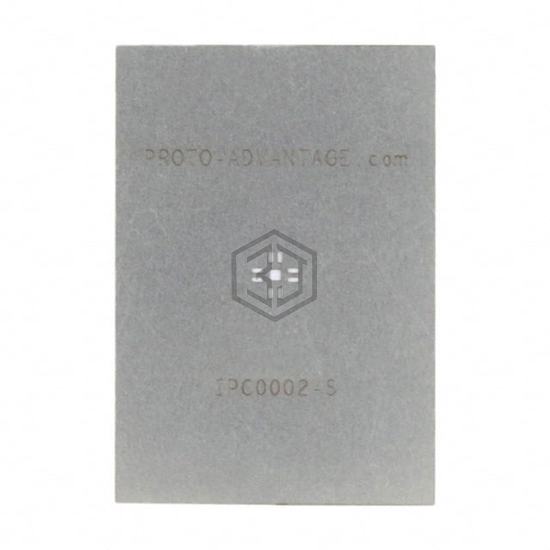

IPC0002-S
QFN-8 STENCIL
IPC0002-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-8 STENCIL. Key specifications: material Stainless Steel, number of positions 8, pitch 0.026" (0.65mm).
In Stock: 9,837
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | QFN/LFCSP |
| Number of Positions | 8 |
| Pitch | 0.026" (0.65mm) |
| Outer Dimension | 1.300" L x 0.900" W (33.02mm x 22.86mm) |
| Inner Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Thermal Center Pad | 0.043" L x 0.043" W (1.10mm x 1.10mm) |
| Material | Stainless Steel |
Frequently Asked Questions
IPC0002-S is a Solder Stencils, Templates manufactured by Chip Quik Inc.. QFN-8 STENCIL
The material of IPC0002-S is Stainless Steel.
The number of positions of IPC0002-S is 8.
The pitch of IPC0002-S is 0.026" (0.65mm).
